Tech development: 2-speed drive EV technology

by | Jul 16, 2019 | 0 comments

Drivetrain technology company ZF has debuted its new 2-speed electric drive EV technology for passenger cars. The system integrates an advanced electric motor with a shift element and appropriate power electronics into a system that extends range and torque options for future electric vehicles.

The improvement in energy conversion efficiency compared to previous e-drives extends the driving range for each battery charge. ZF says its compact design also makes this new drive system of interest for passenger cars in the compact class. The modular design of this unit can also be fine-tuned and scaled up for use in sports and performance vehicles.

“For electric vehicles in everyday use, it is important to obtain as much range as possible from each battery charge,” states Bert Hellwig, Head of System House at ZF’s E-Mobility division. “Every percent of improvement in energy conversion efficiency translates into two percent more range.”

ZF 2 speed drive EV technology

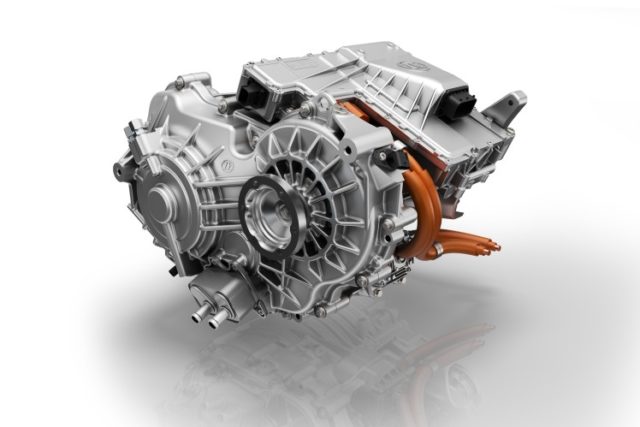

ZF’s 2-speed drive’s compact design is intended for initial use in passenger cars.

To increase the performance rating of the new electric axle drive system, ZF leveraged its expertise in systems to develop a new electric motor with a maximum power rating of 140 kW paired with a two-stage shift element. “Bringing together our know-how in relation to electric motors, gearboxes, and power electronics ensures that we achieve the best possible range from each battery charge”, states Hellwig.

Vehicles with the new 2-speed drive consume less energy, which in turn extends range by up to five percent when compared to a one-speed unit. Shifts take place at 70 km/h.

By connecting to the vehicle’s CAN communication it is also possible to devise other shift strategies, possibly linked to digital map material and GPS.

ZF 2 speed drive EV technology
While no applications are listed, ZF was using a test mule based on a Volkswagen platform.

For example, the vehicle could identify from the GPS route programming how far it is to the next charging station, enabling it to respond by switching into Eco-mode. More effective shifts would also be possible in accounting for topography on the interstate, and on inter-city journeys.

The software in the drive can also be updated thanks to the network link to Cloud services via over-the-air updates.

For vehicle manufacturers, the new 2-speed drive offers two options for using improved energy conversion efficiency. The Original Equipment Manufacturer (OEM) could either go for an extended range while retaining the same size of accumulator, or utilize a smaller accumulator.

Modular approach: bests result for efficiency or performance
The design of this unit that optimizes installation space. The 2-speed system is suitable for compact passenger cars where interior space is at a premium.

The 2-speed concept offers benefits for OEMs who are pursuing performance.

“Until now, with electric motors, vehicle manufacturers have had to choose between high initial torque and a high top speed”, explains Hellwig. “We are now resolving this conflict and the new drive will be compatible for performance and heavier vehicles – for example for passenger cars towing a trailer.”

ZF’s modular EV technology approach combines the 2-speed gearbox with even more powerful electric motors rated for up to 250 kW. This delivers enhanced acceleration and, potentially, faster top speeds. With its modular concept, the new drive can meet a variety of requirements.

There is no information at present on applications slated to use the technology.
